What is a saddle in plumbing?

What is a PVC saddle used for?

PVC saddles tees, also known as snap tees, are used to create a tee fitting for any section of rigid PVC pipe, without having to cut into the PVC pipe to install a traditional three-ended tee fitting.

Are saddle valves legal?

Most state and local codes prohibit the use of a saddle valve, also known as a piercing saddle valve, saddle tap or needle valve, consisting of a clamp that punctures a hole in an existing water intake pipe. It is a shortcut used instead of installing a more permanent and secure connection.

What is a saddle connection?

Saddles are a way of connecting to an existing pipe by actually breaking into the pipe via an elliptical or circular hole, rather than cutting out a whole section of pipe and replacing it with a branch junction, access chamber or IC as discussed above.

Can you turn off a saddle valve?

A saddle valve is mounted directly on to a pipe which is usually 1/2 inch copper tubing. Saddle valves are self-tapping devices. ... Turning the handle counter-clockwise opens the valve. These valves can be installed without shutting off the main water supply.

image-What is a saddle in plumbing?
image-What is a saddle in plumbing?
Related

How does a pipe saddle work?

A pipe saddle is any pipe support that cradles a pipe and transfers the pipe's load weight onto a supporting base. Much like a saddle on a horse supports a rider and keeps them from bouncing on the animal, pipe saddles support a pipe's weight.Feb 24, 2021

Related

What can I use instead of a saddle valve?

A similarly DIY-friendly but more reliable alternative to a saddle valve is a push-fit tee connector designed for ice makers and water dispensers. You install these by cutting out a short section of pipe and installing the tee right into the water line, then you add the small supply line leading to the appliance.Sep 2, 2021

Related

Are saddle valves against code?

Once the faucet is turned on, water will flow through the copper pipe, out the pinhole and through the ice maker line. Saddle valves are against plumbing code now because they are prone to leaks. ... Since saddle valves are often located in places where they get bumped or moved, the chance of a leak increases.

Related

Are saddle valves bad?

Most of them don't leak, but they have a much higher chance of leaking than a properly installed water valve. My advice is to not use saddle valves. When installing an ice maker or whole-house humidifier, tap off of an existing water line with a proper tee fitting and have a proper shutoff valve installed.Mar 24, 2015

Related

What is a saddle in plumbing?

  • A saddle valve is a valve used to supply liquid where a low volume, low pressure stream is required. The name is derived from the fact that it is mounted in such a way that it "saddles" the line, mounting it from both sides. They are typically used for supplying cold water, via a 3/8 inch tube, to: humidifiers and. icemakers in freezers.

Related

What is a saddle pipe?

  • A pipe saddle is a structure consisting of a saddle and integral base that is used to support the pipe by transmitting the load or forces to the adjacent structure.

Related

What is saddle pipe fitting?

  • saddle fitting. A fitting for making a connection to a pipe which is already installed; clamped to the outside of the pipe and sealed with a gasket.

Related

What is a saddle fitting?

  • A saddle, regardless of type, must fit both horse and rider. Saddle fitting is an art and in ideal circumstances is performed by a professional saddlemaker or saddle fitter. Custom-made saddles designed for an individual horse and rider will fit the best, but are also the most expensive.

Related

How does a saddle tap work on a pipe?How does a saddle tap work on a pipe?

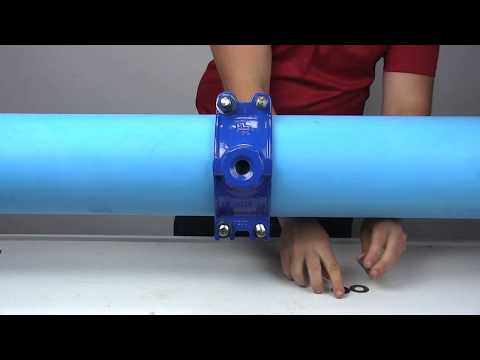

Saddle-tap adapters allow you to tap into an existing pipeline. They have wraparound clamps that provide nearly 360° contact with pipe; as the clamps are tightened, pressure is uniformly distributed around the pipe for maximum support. To install, shut down your line and drill a hole in the pipe where you want to create a connection.

Related

What to use to clamp PVC saddle Tees?What to use to clamp PVC saddle Tees?

Clamp On PVC Saddle Tees We recommend the use of PVC glue and 2 each stainless steel hose clamps for each saddle tee. Note: Use a 61/64" or 1" (maximum) drill bit and drill a hole in the pipe to allow the saddle tee base outlet to fit into the pipe and flush fit the base against the pipe.

Related

What's the best way to install a saddle?What's the best way to install a saddle?

Easy to install: Joining surfaces must be wiped clean. Apply a coat of primer covering an area slightly larger than the saddle. While primer is still wet, apply generous coat of medium bodied PVC glue to the pipe first, then to the saddle and then to the pipe again.

Related

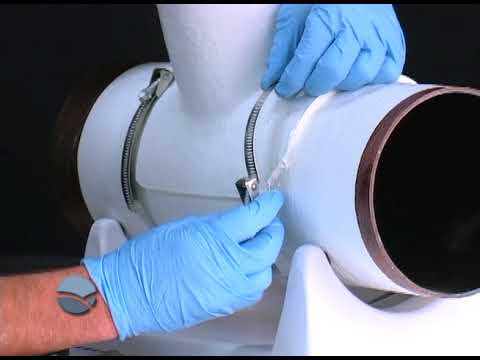

What makes fernco flexible tap saddles AIS compliant?What makes fernco flexible tap saddles AIS compliant?

Fernco Flexible Tap Saddles are designed to meet AIS standards - American Iron and Steel compliant with the Fernco Flexible Tap Saddles. Bentonite tape provides a water tight seal. Pressure tested to hold 10 PSI. Plastic coated steel reinforcing bars apply even sealing pressure.
